The latest products & innovations from Dycon Power Solutions

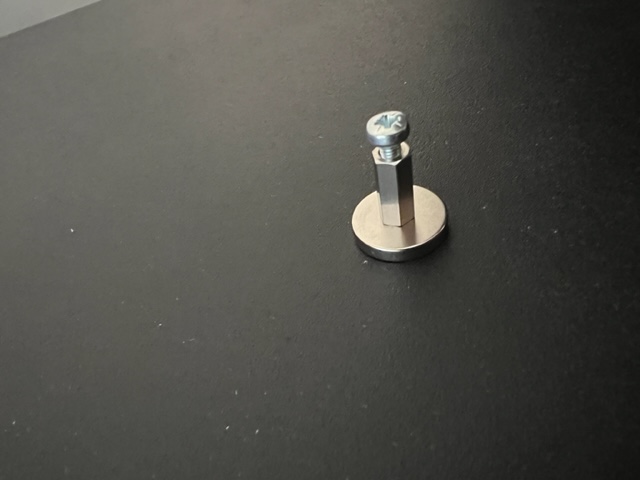

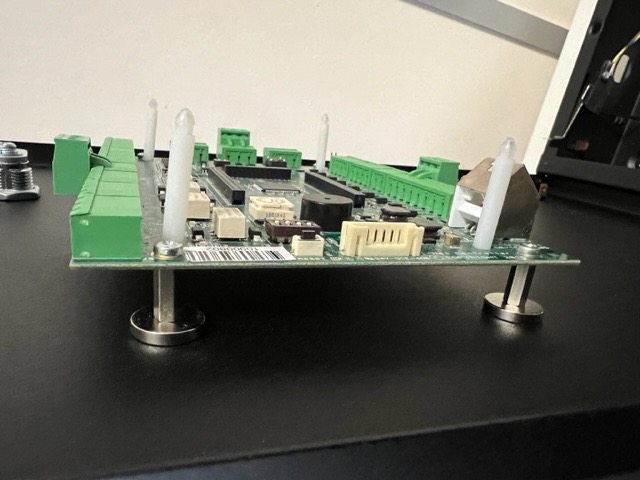

Dycon's FIX-MAG-01, a heavy-duty magnetic fixing kit enables PCB's to be fitted to metal housings without the need for drilling and tapping holes.

The D2401-AA is specially designed for powering 24VDC magnetic fire door releases but can be used for anything requiring 24VDC 1A without battery back-up. Capable of powering up to 8 x double fire doors or 16 x single fire doors, based on 50mA each, the D2401-AA also has an Opto-relay output to remotely signal if the mains or the 24 VDC output fails and an easily visible LED indicator to provide a quick visual status indication. The unit is housed in a new, compact, 1.5mm steel box, attractively styled to blend into the decor of hotels, offices, hospitals, and other large buildings, with rounded corners to make cleaning even easier.

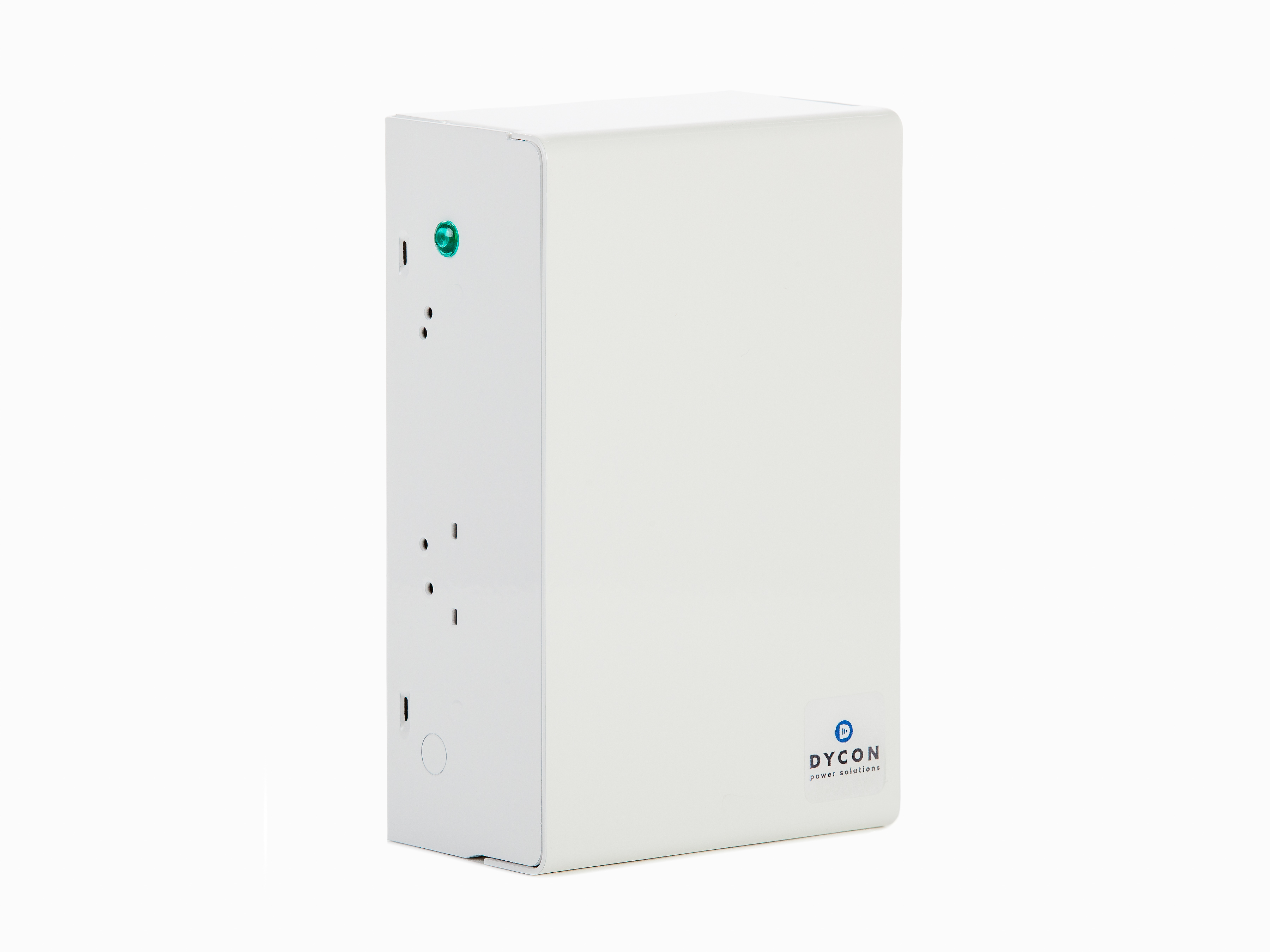

D2401-AA, showing the neat, compact design and the easily visible, green, status indicator LED and, an open shot showing the PCB and a number of the cable knock-outs making installation easy

The new Dycon E-box is designed to provide ample space for an installer fit any one of Dycon's 34 x 12VDC or 24VDC power modules, as well as system peripherals such as output splitters, DIN-rails and relays, and these can be supplied ready-fitted. The E-box is pre-drilled to accept a number of 3rd party control modules from leading manufacturers such as Access Security Products, Control Soft, Honeywell, Lenel, Mercury, Paxton, Vanderbilt, ACT, Gallagher, and HID. Even once these are all fitted, the E-box can still have space for 2 x 17Ah batteries.

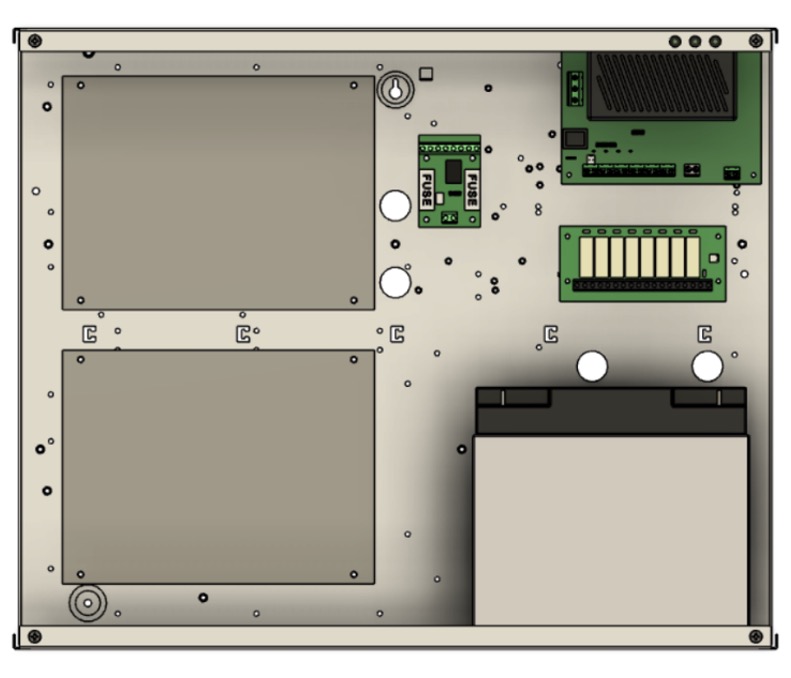

A typical E-box arrangement showing the layout when fitted with a Dycon D1532-P 3A EN50131 G3  PSU module, 2 Mercury controllers, an 8-way output splitter, a fire relay and a 17Ah battery
